Features:

• Bandwidth: 200 MHz
• Sample Rate: 2 GS/s Real Time
• 4 Fully Isolated and Floating Channels, plus Isolated External Trigger
• Record Length: 2.5 kpts
• 8 Hours of Continuous Battery Operation with Two Batteries Installed, Hot Swappable for Virtually Unlimited Freedom from AC Line Power
• Optional Power Application Software offers the Broadest Range of Power Measurements at its Price Point
• Quickly Document and Analyze Measurement Results with OpenChoice® Software or Integrated CompactFlash® Mass Storage
• FFT Standard
• Advanced Triggers to Quickly Capture the Event of Interest
• Traditional, Analog-style Knobs and Multilanguage User Interface for Easy Operation
• Quick Setup and Operation with Autoset Menu, Autorange, Waveform and Setup Memories, and Built-in, Context-sensitive Help
• Backlit Menu Buttons for High Visibility
• 11 of the Most Critical Automatic Waveform Measurements

Applications:

• Industrial Power Design, Troubleshooting, Installation, and Maintenance
• Advanced Electronics Design, Troubleshooting, Installation, and Maintenance
• Automotive Design and Test
• Education

Specifications:

• 200 Hz
• 2 GS/s
• 2.5 kPts

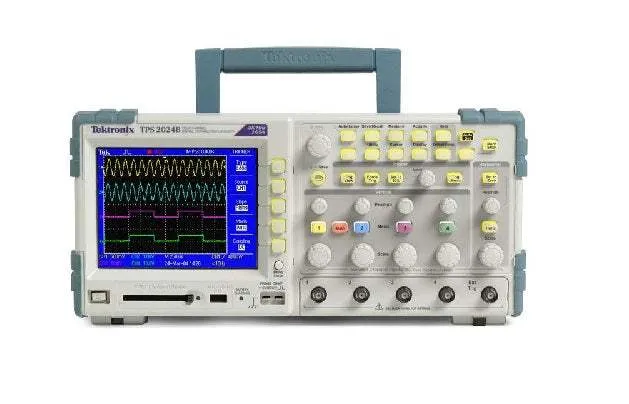

The TPS2024B offers a distinctive range of capabilities in an oscilloscope with controls and menus you will find familiar and easy to use. The TPS2024B 4-channel version, with IsolatedChannel™ technology, provides isolation from ground and isolation between channels allowing you to take measurements with less worry about damaging circuitry. Battery power comes standard, making it a natural choice for field applications. For work on power electronics, optional software integrates commonly needed power system measurements into the instrument, speeding up power analysis and troubleshooting.
