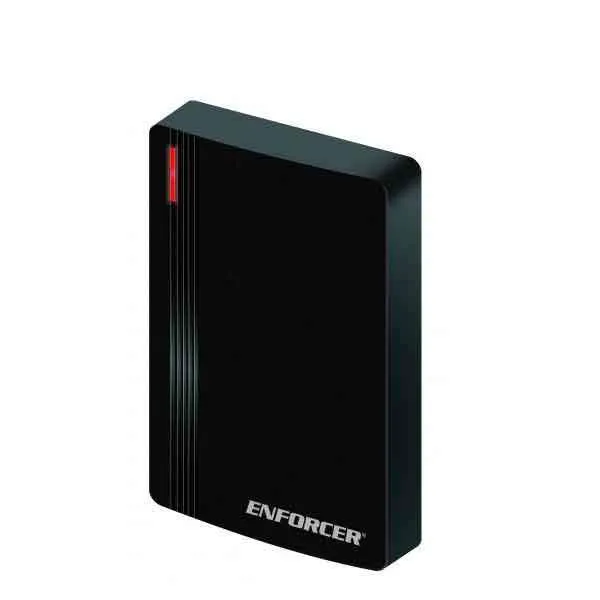

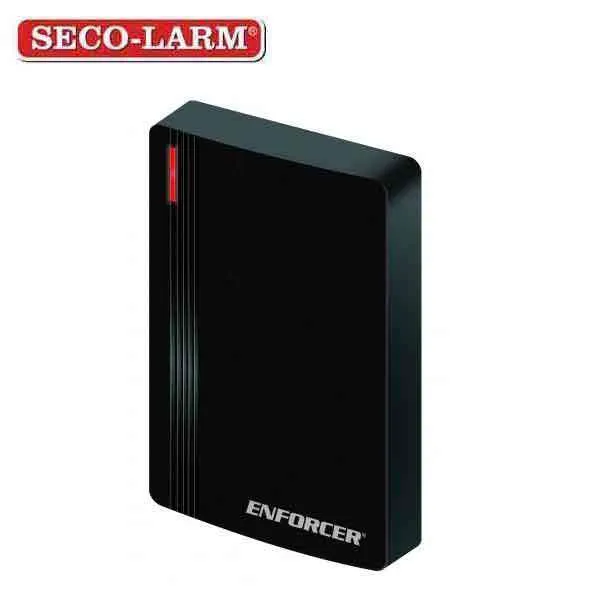

Product Details
＋
- 9~24 VDC Operation
- Low current draw – 50mA max.
- Built-in buzzer for external alarm input
- Multicolor status LED
- EM 125 kHz
- 10 User proximity cards included
- Outdoor rated – IP66
- Extreme cold tolerance to -40° F (-40° C)
- Wiegand output reader – EM 26 bits
- Sturdy black ABS plastic housing
Specifications
| Operating Voltage | 9~24 VDC |
| Current Draw - Standby | 20mA@12VDC |
| Current Draw - Active | 50mA@12VDC (max.) |
| Outputs - Wiegand | EM – 26 bits |
| Card type | 125kHz EM |
| Card read range | 0~2" (0~5 cm) |
| IP Rating | IP66 |
| Enclosure material | Black ABS plastic |
| Operating temperature | -40°~140° F (-40°~60° C) |
| Operating humidity | 10~98% non-condensing |
| Dimensions | 1-7/8"x4-3/4"x13/16" (48x120x20 mm) |
| Weight | 3.7-oz (105g) |
