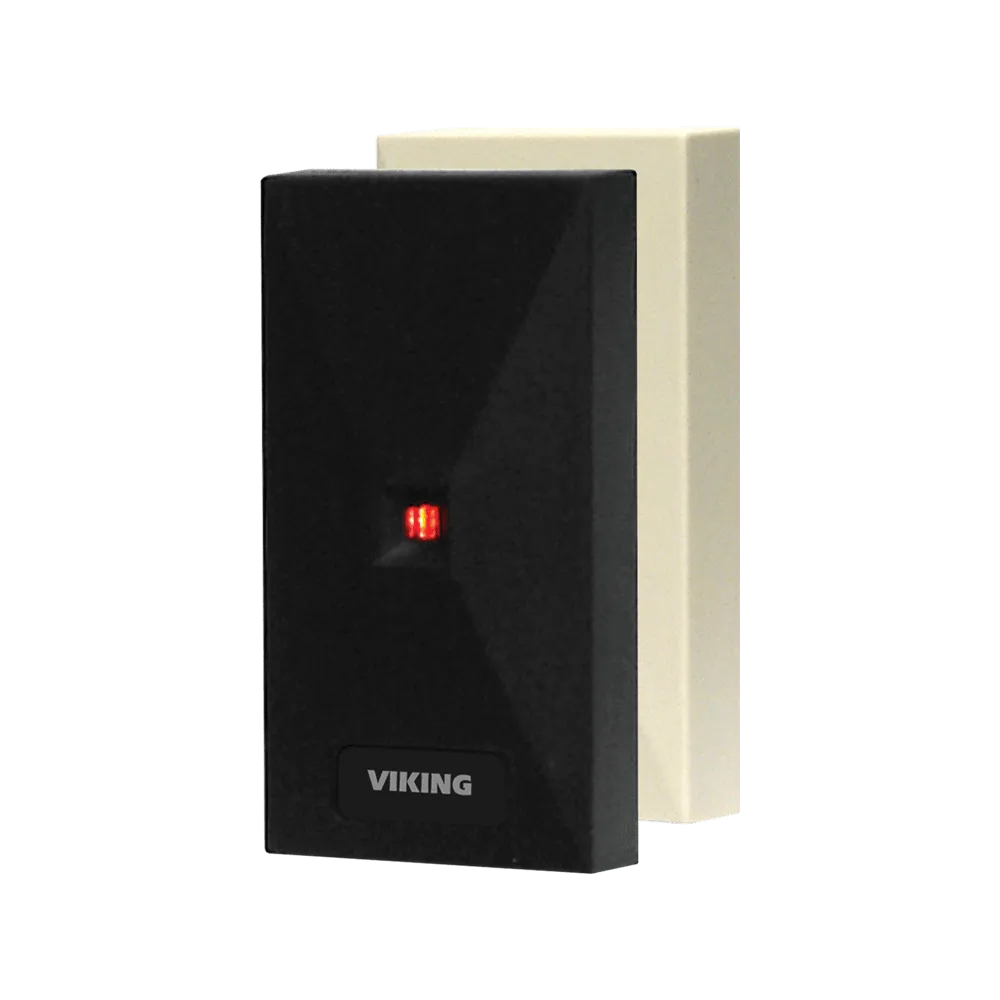

Viking PRX-1 Features:

• Read range of up to 6 inches
• Standard 26-bit Wiegand interface
• Technologies supported: Viking PRX-C, , , certain legacy HID® proximity protocols* and certain AWID 125Khz proximity protocols**
• Compact size allows mounting to mullion, door or window frame
• Designed for outdoor use, the PRX-1 comes standard with Enhanced Weather Protection (EWP) (see DOD# 859 for more information)
• PRX-1 is designed to meet IP66 Ingress Protection Rating
• Pigtail connection for easy installation
• Red LED indicates power and flashes off during card read
• Transducer provides beep during card read
• CE marked
• Manufacturer Warranty: 2 Year Limited Warranty

* HID and the HID logo are registered trademarks of HID Global Corporation, an ASSA ABLOY company. All other trademarks are the property of their respective owners.

** AWID is a trademark of Applied Wireless Identification Group.

Viking PRX-1 Application:

• Accessible Entry System
• Accessible Entry System with Video
• Apartment/Office Entry Controller
• Stand Alone Keyless Entry System
• PRX-C Proximity card
• Thin proximity card
• Proximity Key FOB
• Long range transmitter with proximity module

Viking PRX-1 Specifications:

• Power: 5-14V DC 45mA - average, 80mA - peak. Dimensions: 3.2” x 1.7” x 0.7”(80mm x 43mm x 17mm )
• Environmental: -40° F to 150° F(-40° C to 65° C) with 5% to 95% non-condensing humidity Connections: 18” long pigtail leads, 24 gauge
• Technologies Supported: Viking PRX-C, PRX-C-ISO, PRX-FOB, certain legacy HID® proximity proto-cols* and certain AWID 125Khz proximity protocols**
