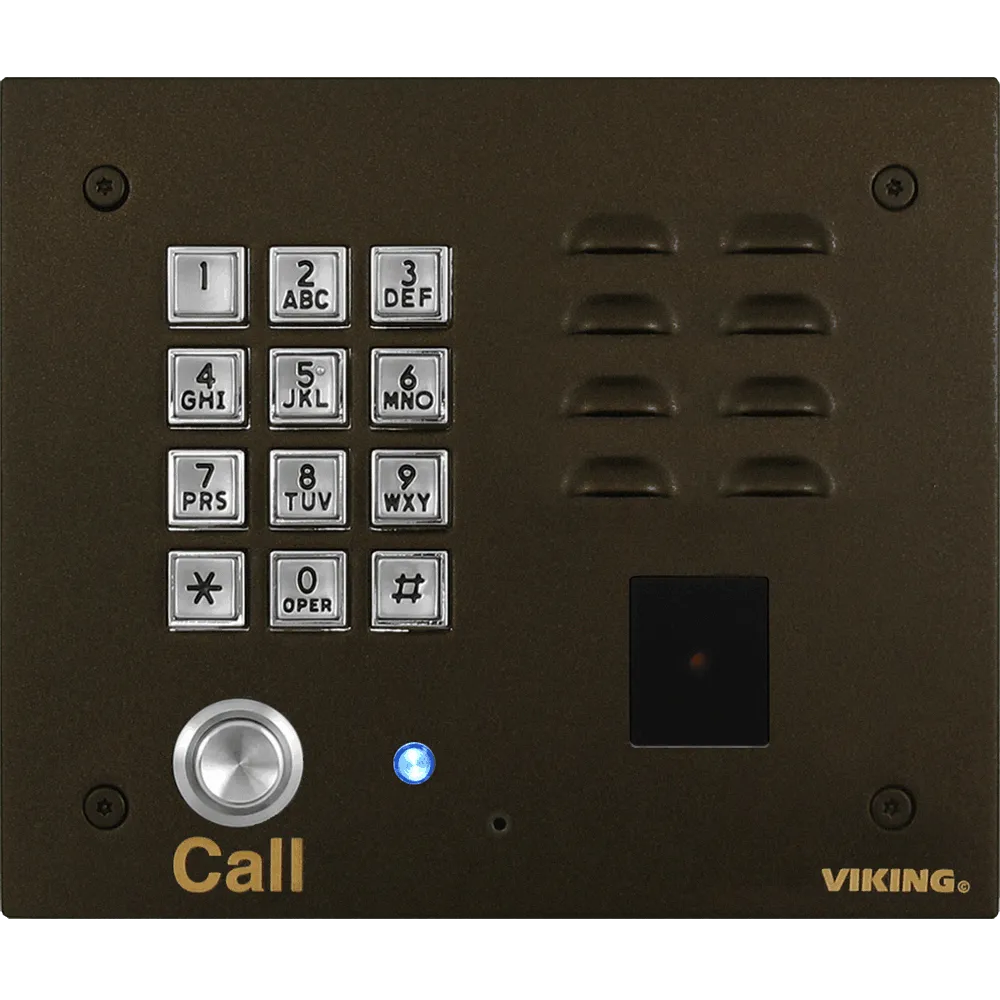

• Built-in 125KHz 26-bit Wiegand proximity card reader with LED, beep card read confirmation, and EWP board protection
• Compatible with the following Viking Proximity Cards and Fobs: ,  and
• Vandal Resistant Features:
  • 14 gauge louvered 316 stainless steel faceplate with scratch resistant powder coating
  • Stainless steel “Call” button
  • Heavy duty metal keypad
  • T-10 Torx security mounting screws
• Weather Resistant Features:
  • Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating
  • Marine grade 316 stainless steel faceplate, screws and push button switch
  • Switch internally sealed per IP67
  • Mylar speaker
  • Self-draining mic mount
  • Faceplate, mic and speaker gaskets
• Blue “in use” LED
• Telephone line powered
• Volume adjustments for microphone and speaker
• Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
• Selectable auto-answer feature for monitoring
• Selectable push button disconnect
• Zinc plated steel rough-in box with (2) 3/4” conduit knockouts
• Optional  Surface Mount Box available
• Optional  to illuminate the front panel at night

APPLICATIONS

• Apartment entry phone when used with the  Apartment Entry Dialer or  Apartment/Office Entry Controller or  Apartment Entry Controller
• Use with a Viking  to control 1 or 2 (expandable to 8) speaker phones and door/gate control on a single phone line
• Use with a Viking  to control 1 to 4 speaker phones and door/gate control on a single phone line
• Courtesy and customer assistance phone
• Automated teller (ATM) phone
• Use with a Viking  for proximity card reader door control
• Provide unique front and back door chimes and paging when use with a Viking  or  and
• Kiosk phone with (100 number speed dialing) when used with the  Multi-Number Dialer
• Use with Viking’s Proximity Cards: ,  or

SPECIFICATIONS
