Product Details
＋

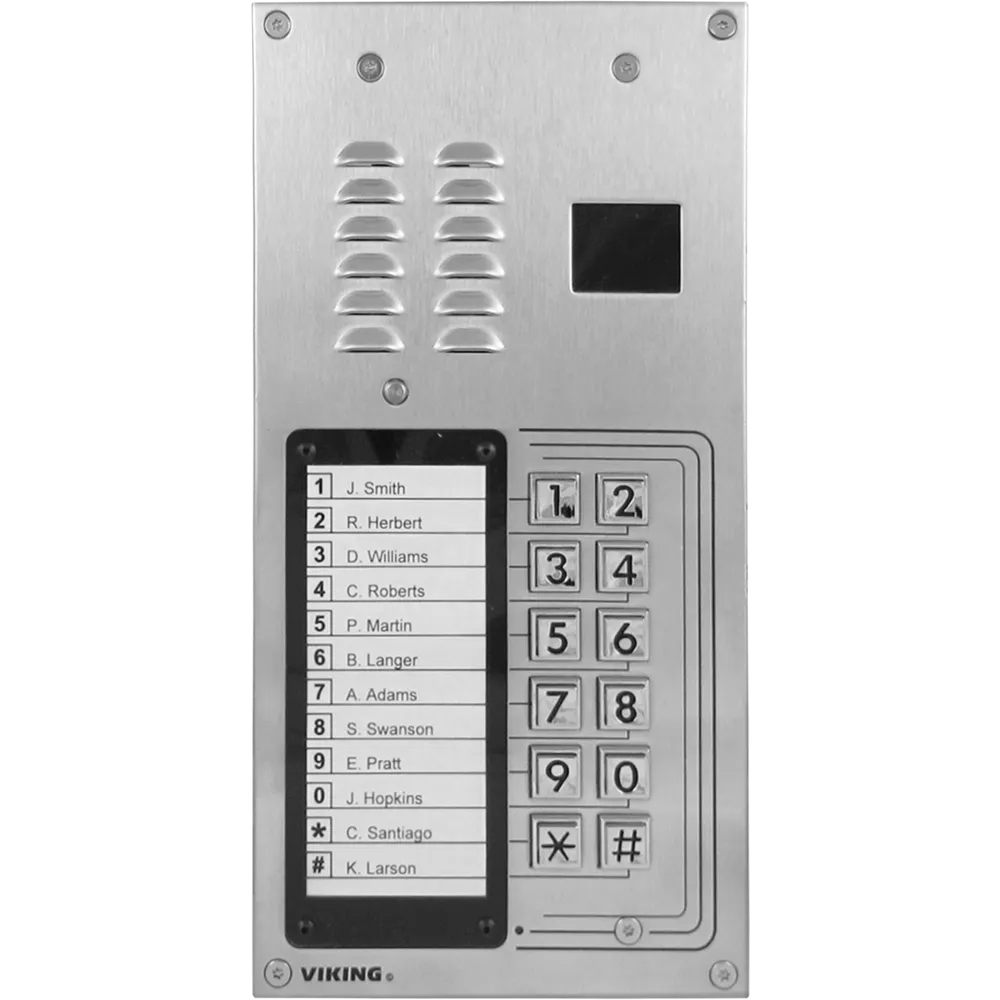

Viking K-1270 Features
- Vandal Resistant Features
- 14 gauge louvered 316 stainless steel faceplate
- Permanent laser etched graphics
- Speaker and mic screen
- Heavy-duty metal keypad buttons
- T-10 Security Torx drive mounting screws
- Weather Resistant Features
- Marine grade 316 stainless steel faceplate and screws
- Keypad internally sealed per IP67
- Mylar speaker
- Self-draining mic mount
- Gaskets for faceplate, mic, and speaker
- Built-in 125 KHz 26-bit Wiegand proximity card reader with LED, “beep” read confirmation, and EWP board protection
- Entry phone operates on 12 to 24 Volts AC/DC
- Video camera requires 6 to 22 Volts DC power
- 12 speed dial buttons (22 digits each)
- 12 alternate number positions (22 digits each)
- One button operation (no call button)
- Hang up on CPC, busy, silence, time-out or dial tone
- Touch tone restriction from microphone
- Integral relays for camera control and door strike
- 50 keyless entry codes
- Postal lock input
- Use with for increased security
- Use with for “No CO” (phone line) operation
- See model for integral camera
- Optional surface mount box (DOD 424)
APPLICATIONS
- Small apartment buildings
- Professional buildings
- Gated communities
SPECIFICATIONS
| Dimensions | 5″ x 10″ x 2.5″(127mm x 254mm x 63.5mm) |
|---|---|
| Shipping weight | 4.8 lbs. (2.2 kg) |
| Environmental | -30° F to 150° F (-34° C to 65° C) with 5% to 95% non-condensing humidity |
| Door Strike Relay Contact Rating | 5A @ 30VDC/250VAC maximum |
| Connections | (16) gel-filled butt connectors (3M Scotchlok UR2) |
