- Multi-format P50 reader
- Reads MIFARE® tokens
- Reads EM4100 tokens
- Reads Net2 tokens
- A choice of black or white fascias
- Low profile - less than 16mm deep

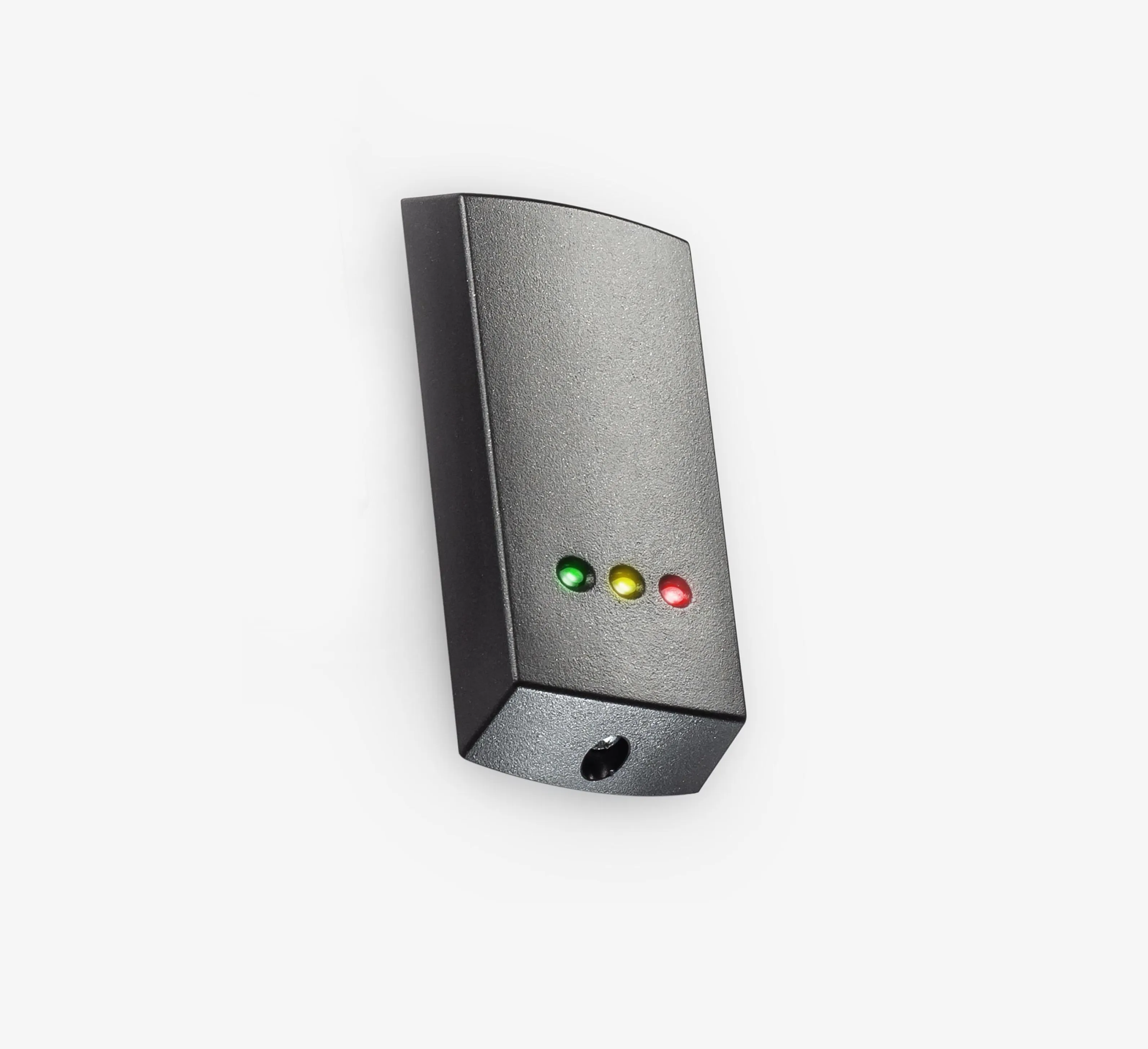

About – The Proximity P series MIFARE® reader is suitable for use with Net2 systems. The reader is multi-format and can be used with a choice of access tokens including MIFARE®Classic protocol ISO 14443A. It can also be used with EM4100 and Paxton Net2 tokens.
The P series readers are supplied with black fascias only. Replacement fascias are available in black and white/gray and are free of charge to Paxton registered installers from the Extranet.
MIFARE and MIFARE Classic are trademarks of NXP B.V
Installation – The reader is wired as shown on the control unit label. Be sure to avoid mounting on metal surfaces or near other proximity readers as this will affect the read range. The cable exits centrally from the back of the reader making drilling and mounting very accurate.
Operation – A token is read by holding it within close proximity of the reader. Once a token has been read the control unit looks up the access permissions of that user. Access is then granted or denied as appropriate. If access is granted the green LED flashes. If access is denied the red LED flashes.
We have added Genuine HID Technology to the P50 Mifare readers, they can now read HID 125kHz Proximity tokens, when licensed with an activation card. If required these readers can still be enabled to have Wiegand output, via a separate activation card.
