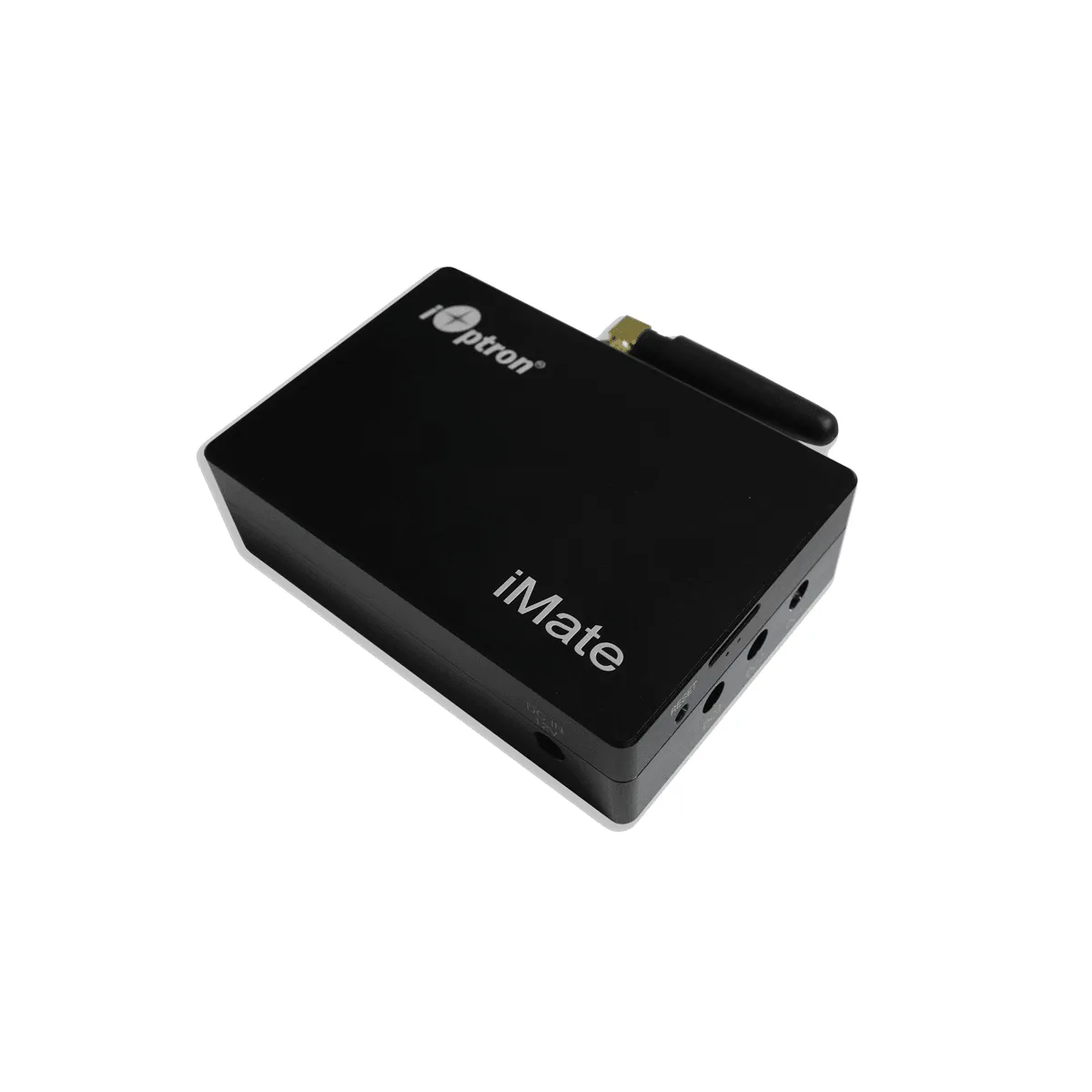

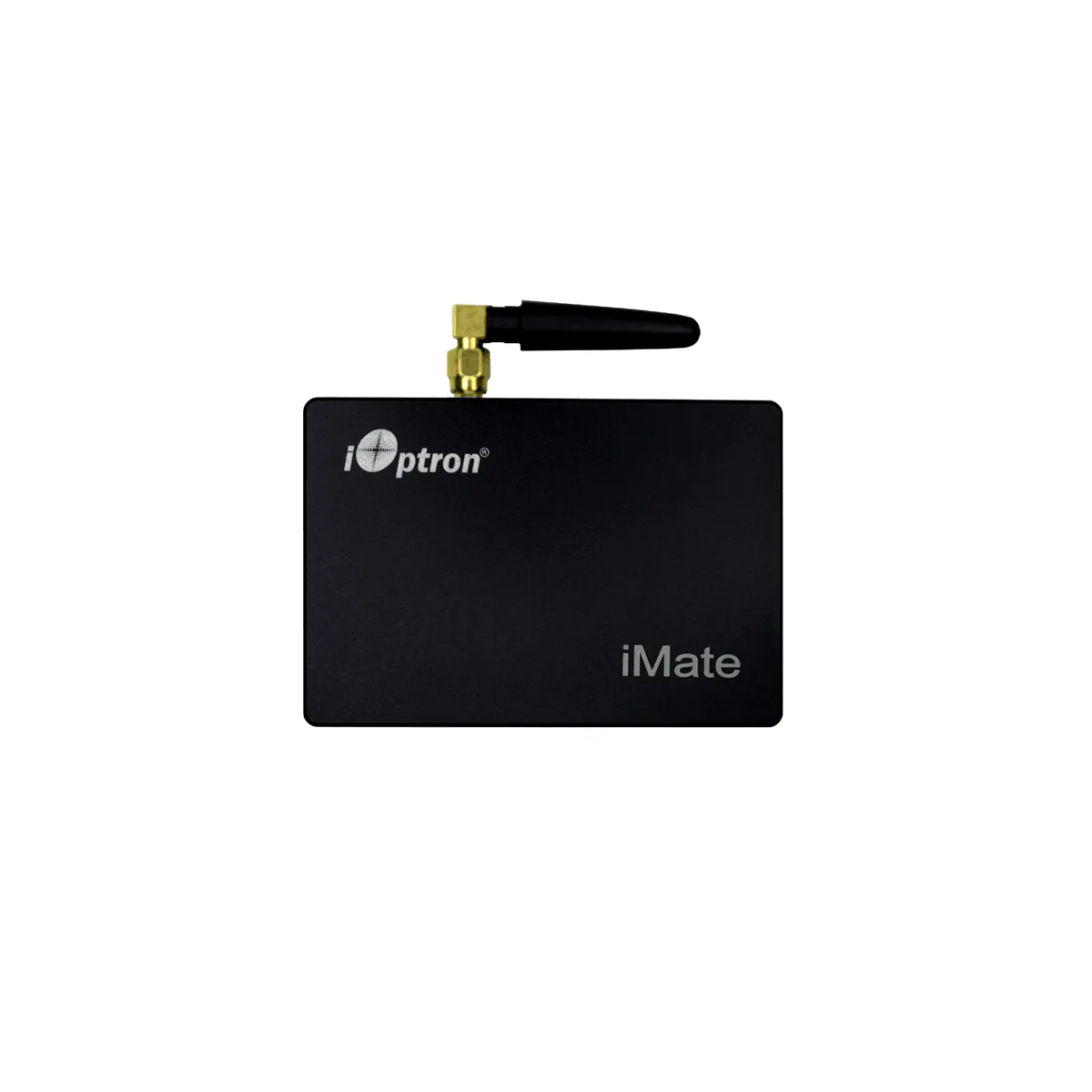

iOptron iMate Astronomy Control Box

The iMate is a single-board computer that features a powerful 64-bit ARM processor with Wi-Fi, preloaded KStars planetarium software, Ekos control and automation tool, and INDI drivers. This hardware-software combination will support the use of most current and future devices (cameras, focusers, filter wheels, etc.) allowing the user to choose a brand and model.

With 32Gb eMMC storage along with a slot for up to 64Gb TF (micro SD) memory, iMate has the ability to control and capture an entire automated imaging session. The iMate is cross-platform; use it with Windows, IOS, Linux, Android, etc.

Features

Orange Pi 3 LTS with 64-bit ARM processor, 2GB LPDDR3 SDRAM and 32GB EMMC flash memory

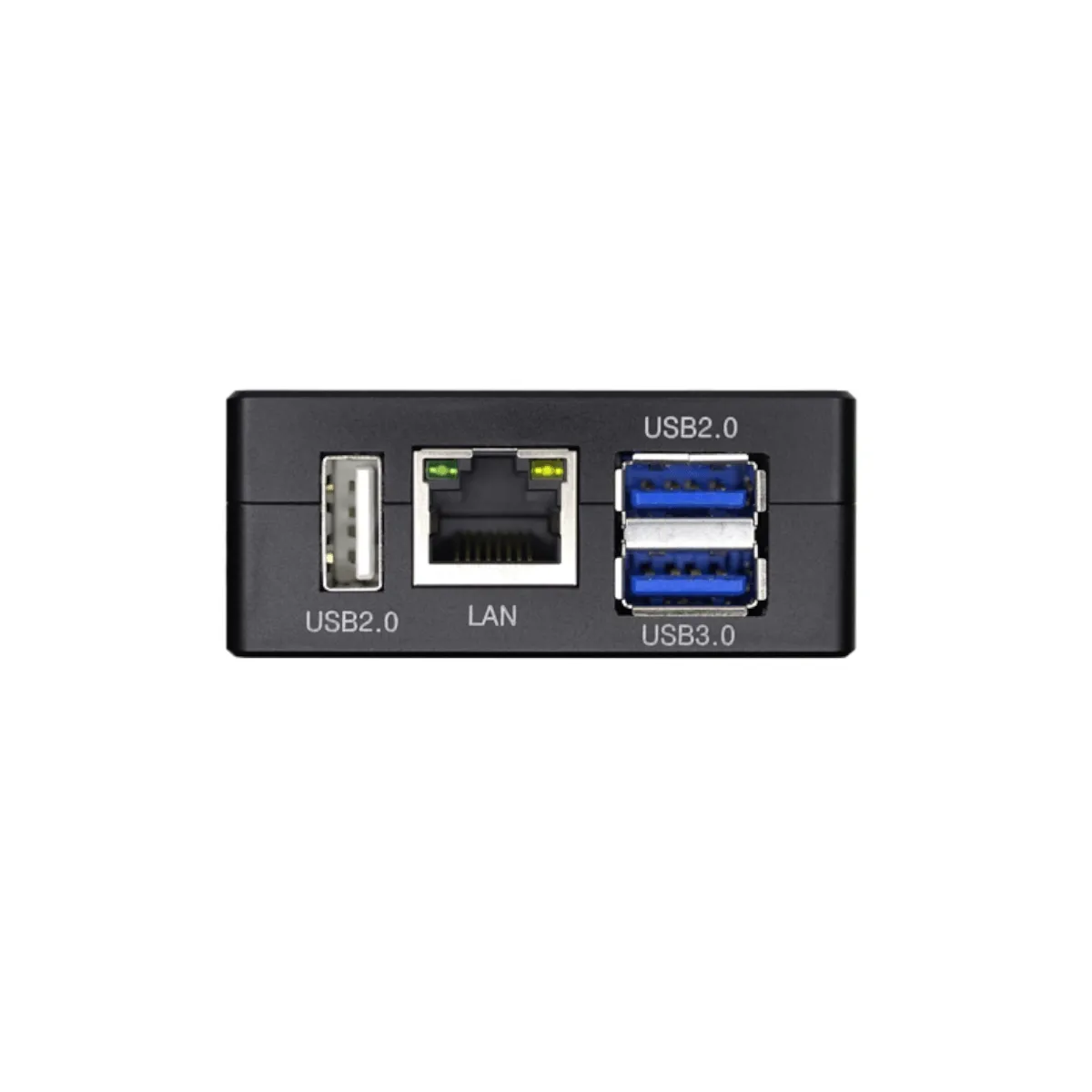

1X USB3.0 and 2X USB2.0 ports

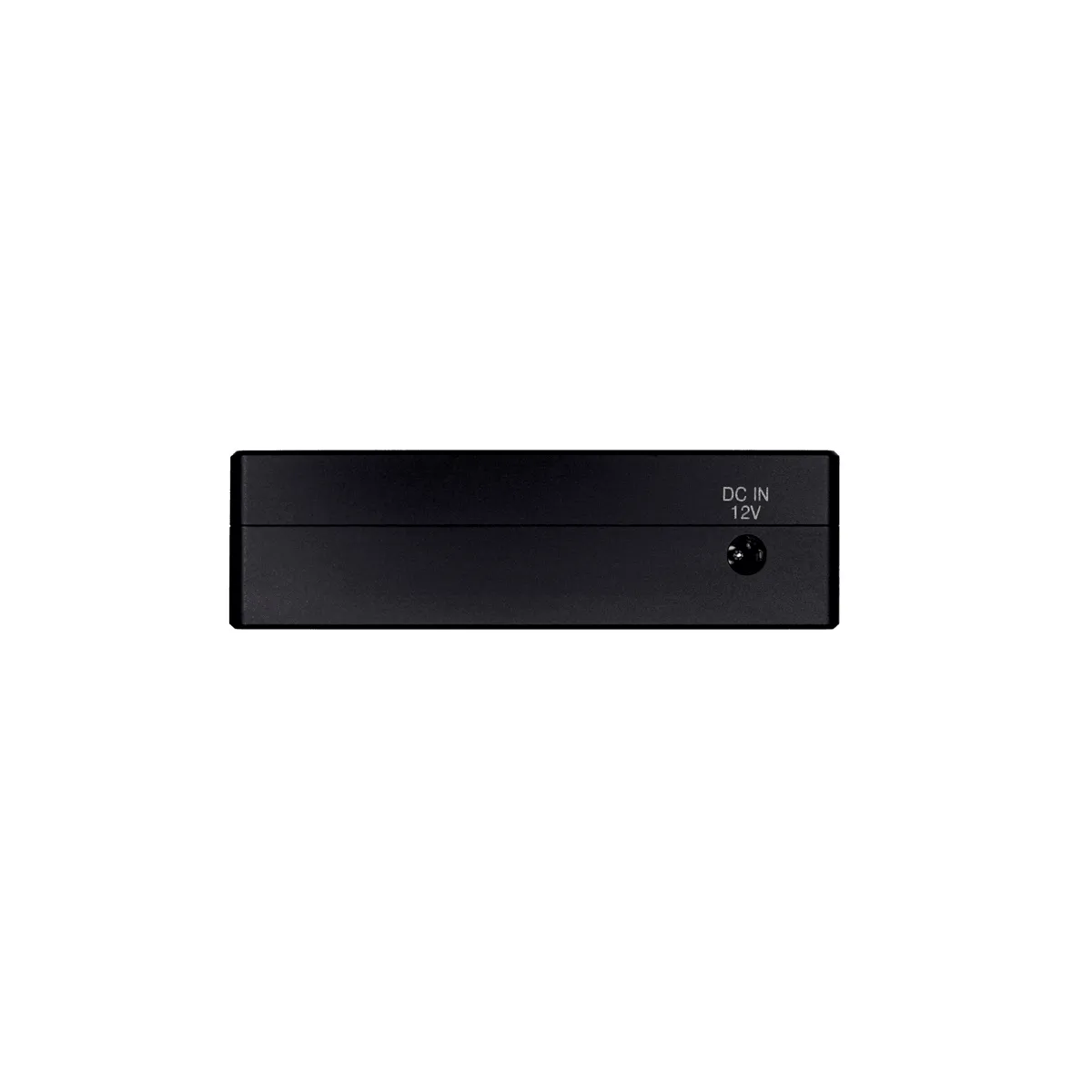

3X 12VDC outputs (2 programmable)
Up to 64Gb high speed MicroSD card (class 10 or higher)
Open Source Architecture
Preloaded KStarts/Ekos/INDI driver for mount, camera, focuser and other device control
iPolarServ for iOS and Android polar alignment
Windows, MacOS, iOS, Linux, Android remote connection to iMate via WIFI network

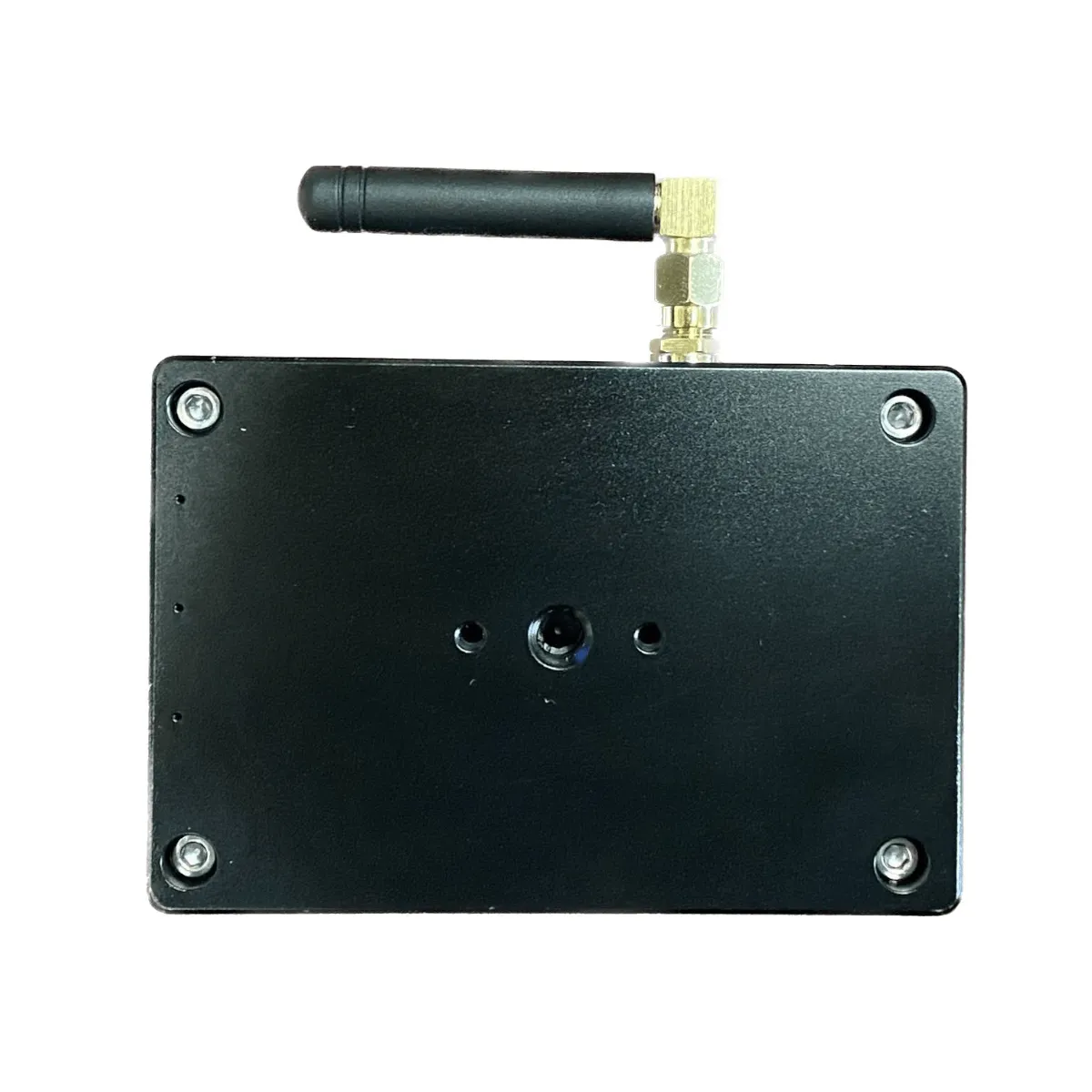

Mounting method: 31mm dovetail saddle for finder scope shoe mounting, 1/4"-20 threaded hole, or 2X M3

Technical Specifications

Orange Pi 3 LTS with 64-bit ARM processor, 2GB LPDDR3 SDRAM and 32GB EMMC flash memory
1X USB3.0 and 2X USB2.0 ports
3X 12VDC outputs (2 programmable)
Up to 64Gb high speed MicroSD card (class 10 or higher)
Open Source Architecture
Preloaded KStarts/Ekos/INDI driver for mount, camera, focuser and other device control
iPolarServ for iOS and Android polar alignment
Windows, MacOS, iOS, Linux, Android remote connection to iMate via WIFI network
Mounting method: 31mm dovetail saddle for finder scope shoe mounting, 1/4"-20 threaded hole, or 2X M3
