Product Details
＋
DH-ASR2200A

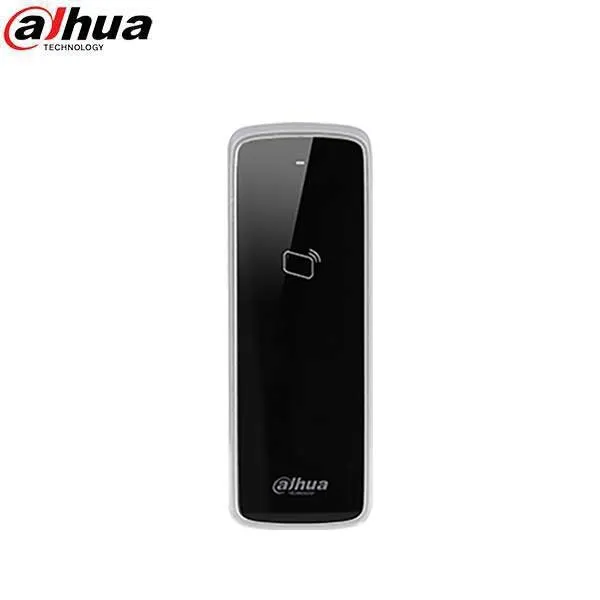

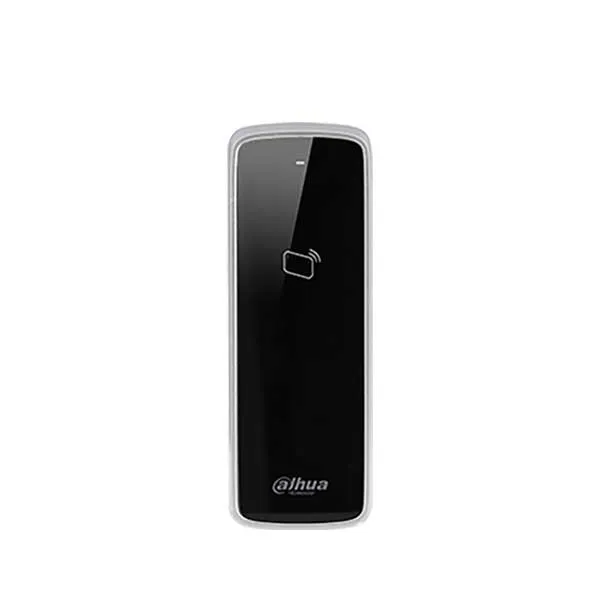

This is the Dahua Slim Card Reader with water-proofing and 13.56 MHz RFID. it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility.
Features
- Wiegand 34 or RS485 Protocol
- MIFARE 13.56 MHz Card
- Waterproof Design
- Watch Dog Function for Tamper Detection
- IP65 Ingress Protection
- Surface-or Flush-mounted Installation
Specifications
| System | |
| Main Processor | 8-bit |
| Visual Indicator | LED |
| Audible Indicator | Buzzer |
| Reader | |
| Format | 13.56 MHz MIFARE |
| Distance | 2.36 in. to 3.15 in. maximum |
| Response Time | < 0.1 s |
| Interface | |
| To Controller | Wiegand 34 (Default), RS485 |
| Electrical | |
| Power Supply | 5 VDC to 16 VDC, 100 mA, 300 mA, 800 mA |
| Construction | |
| Color | Black |
| Dimensions | 5.31 in. x 1.87 in. x 0.63 in. |
| Ingress Protection | IP65, water-resistant |
| Certifications | EN UL FCC CAN/CSA |
