Product Details
＋
Product Overview

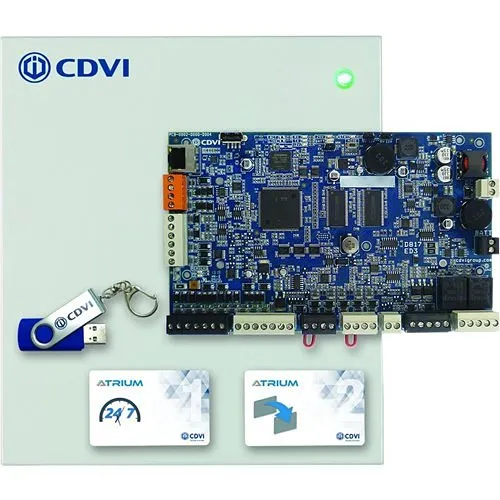

The A22K is ATRIUM’s encrypted web-based (https) door controller. Use your smartphone, tablet or any web-enabled device to easily manage the system over a secure connection in the office, at home or on the road! ATRIUM’s unique and effortless card enrollment mode minimizes system start up and simplifies your life.
Main Features
- Controls 2 doors and 4 readers (Entry/Exit per reader port)
- Pre-assembled universal plug-in power supply (120V/240V) included
- Convert any A22K door controller to an A22KEC elevator controller by simply updating the firmware for free (up to 256 floors).
- On-board Ethernet Port with AES 256-bit encryption
- On-board RS485 communication bus, 1220 m (4000 feet)
- Embedded secure HTTPS web server
- Lock outputs: 2 (750 mA @ 12 VDC/each)
- Relay Outputs: 2 Form C relays (Dry Contact) 5 A @ 250 VAC, 7 A @ 125 VAC, 7 A @ 30 VDC
- 6 multi-purpose inputs (12 using zone doubling)
- Up to 10,000 users, cards and 25,000 even buffer
Main Features
- Protect your premises from theft and unauthorized access with this door access control panel
- With proximity technology, get highly-secure access with outstanding and consistent performance
- Perfect access control solution for door
General Information
Name: CDVI A22K ATRIUM KRYPTO 2-Door / 4-Reader Encrypted IP Door Controller, CDVI Group, CDVI
Category: CDVI, Access Control, Control Panels, Control Panels
UPC Code: 804081187090
Country of Origin: France. Country of origin is subject to change.
