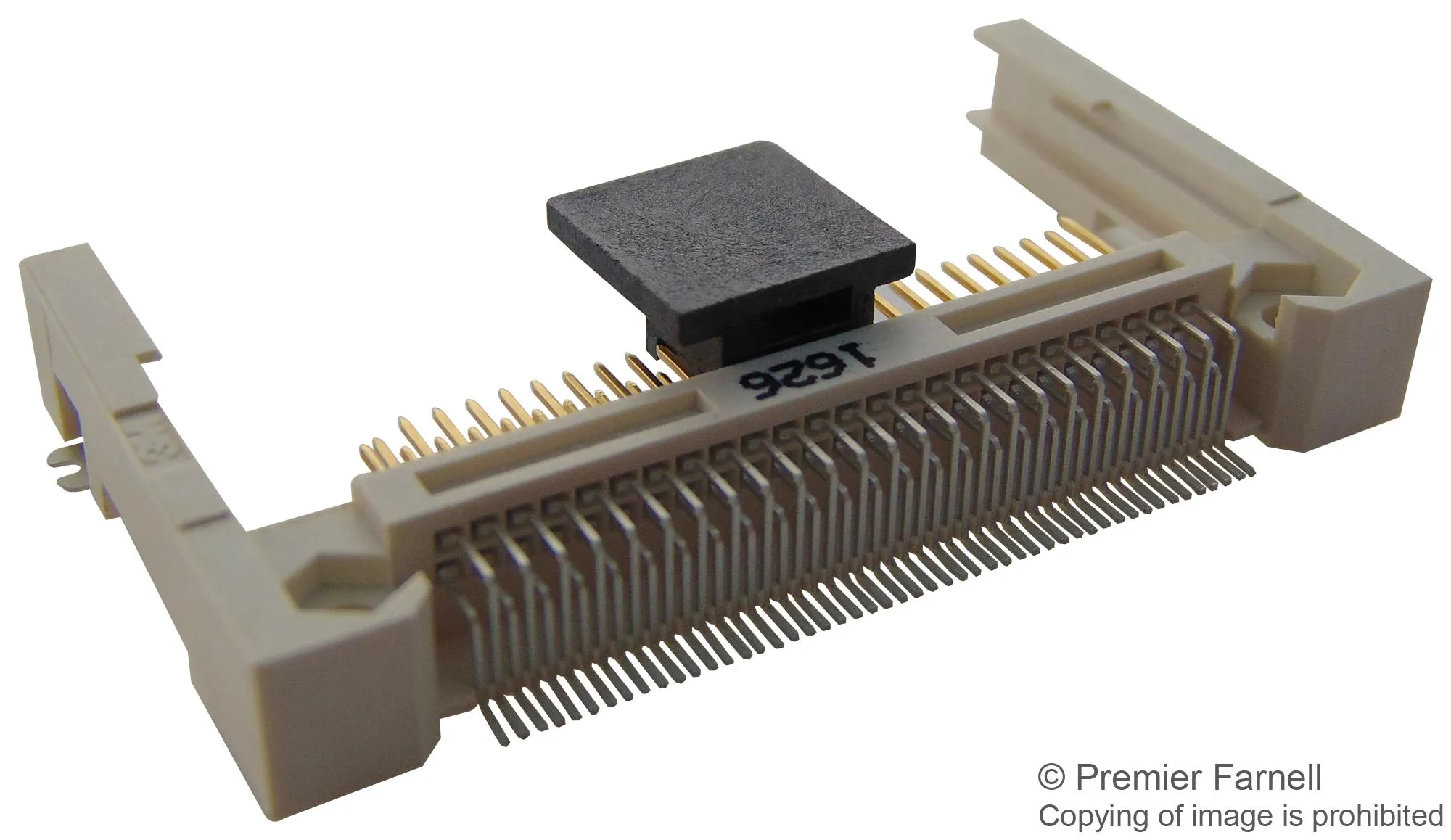

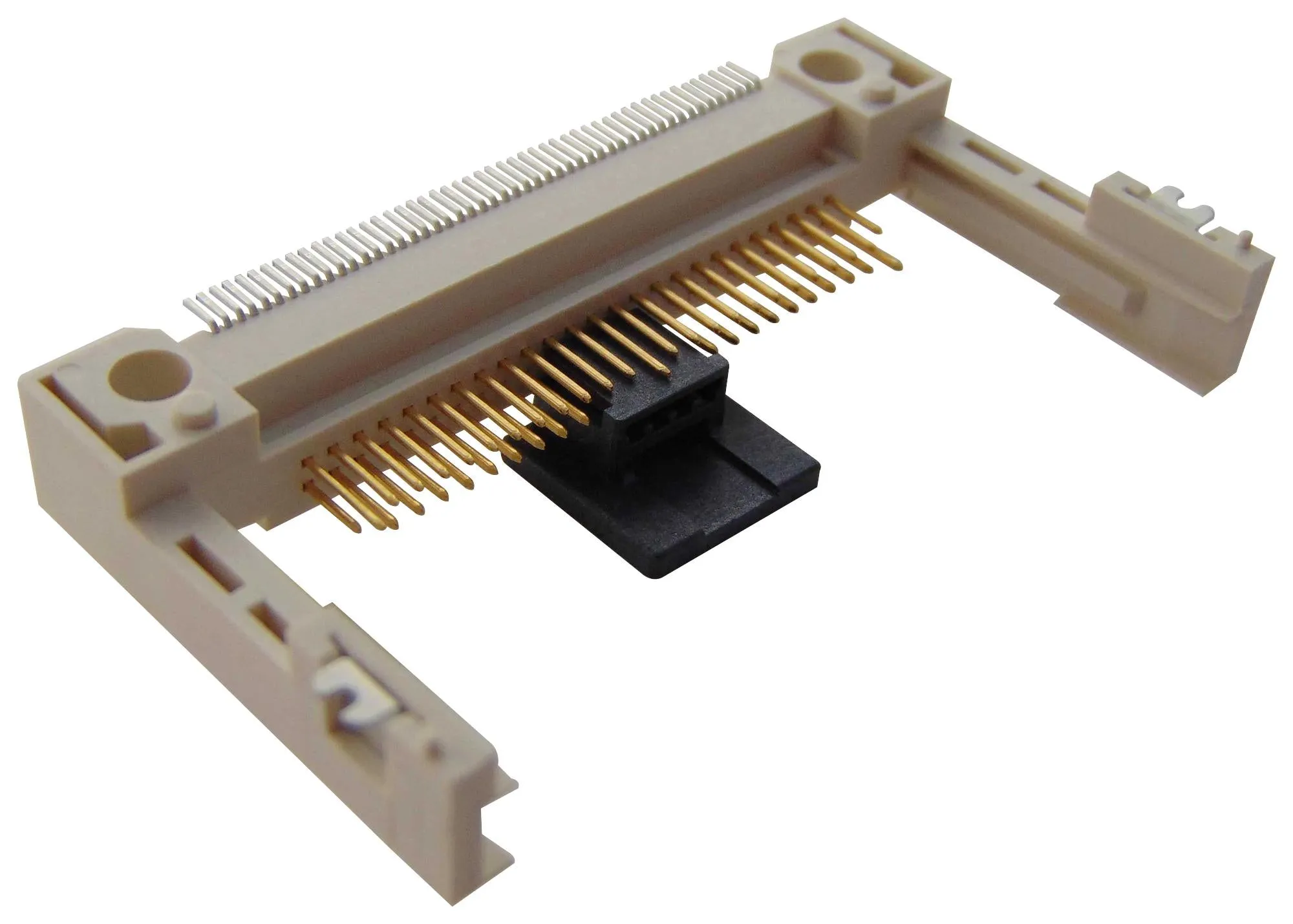

The N7E50-Q516RB-50-WF is a 50-way surface mount CompactFlash� Type II Card Header with gold-plated copper alloy contacts. The 7E50 series CF card header has high temperature thermoplastic insulation and 2mm board standoff that enables board population. Headers mate with both CompactFlash� Type I and type II cards. Single row surface mount solder tails facilitate auto placement and IR soldering.

• Extended guide rails enable accurate and easy card insertion
• Normal type, ejector not acceptable
• Meets CFA standards for known compatibility and reliability
• Beige color
• UL94V-0 Flammability rating
• 0.5A Current rating
• 10³MR at 500VDC Insulation resistance

Applications

Industrial

Other details

Brand	3M
Part Number	N7E50-Q516RB-50-WF
Quantity	Each
Technical Data Sheet EN
